AVMATRIX SDI Splitter 1×4 Distribution Amplifier - 3G/HD/SD Supported, Re-clocking & Signal Equalization for 1080p@60Hz (Model SD1141) | Perfect for Live Broadcasting, Video Production & Professional AV Setups

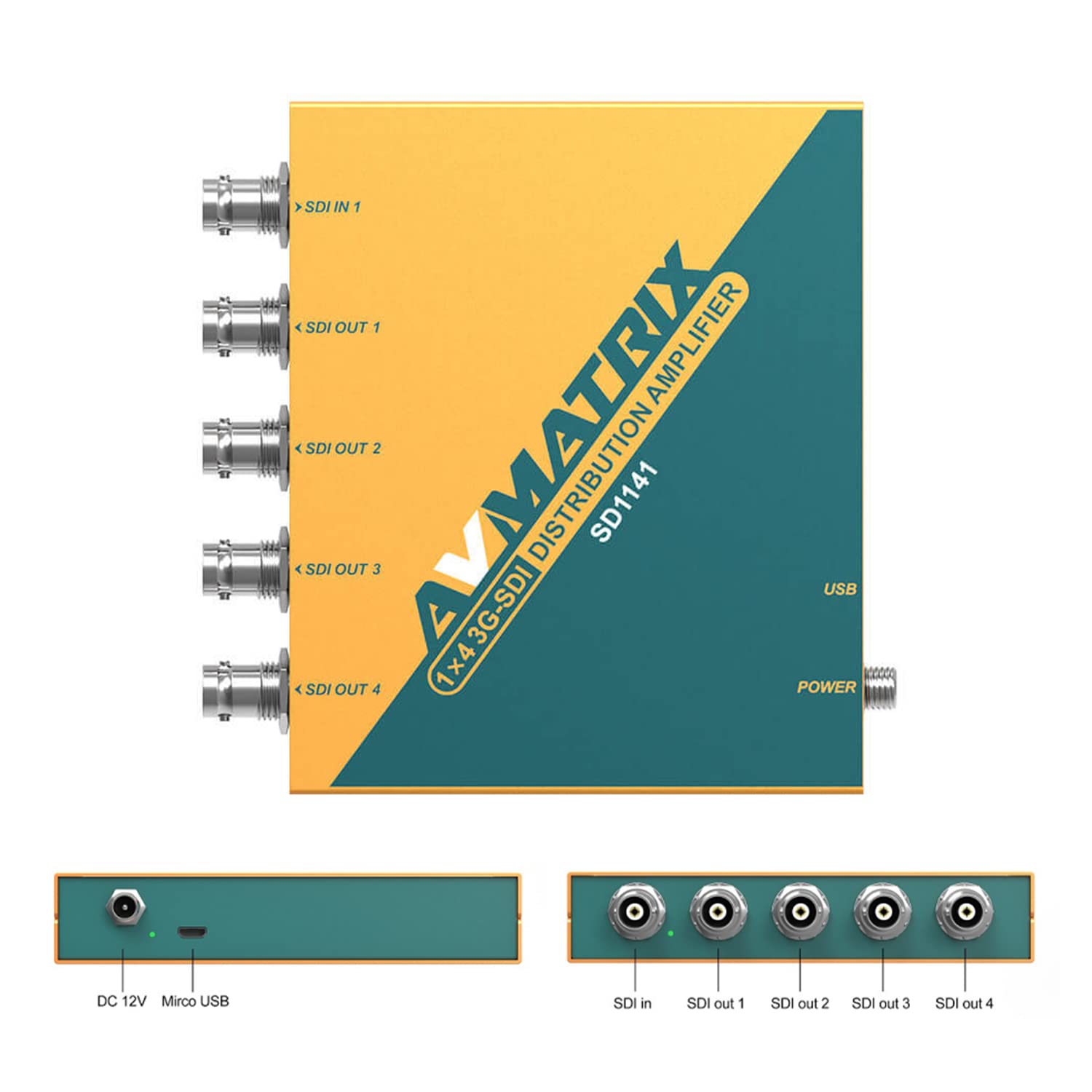

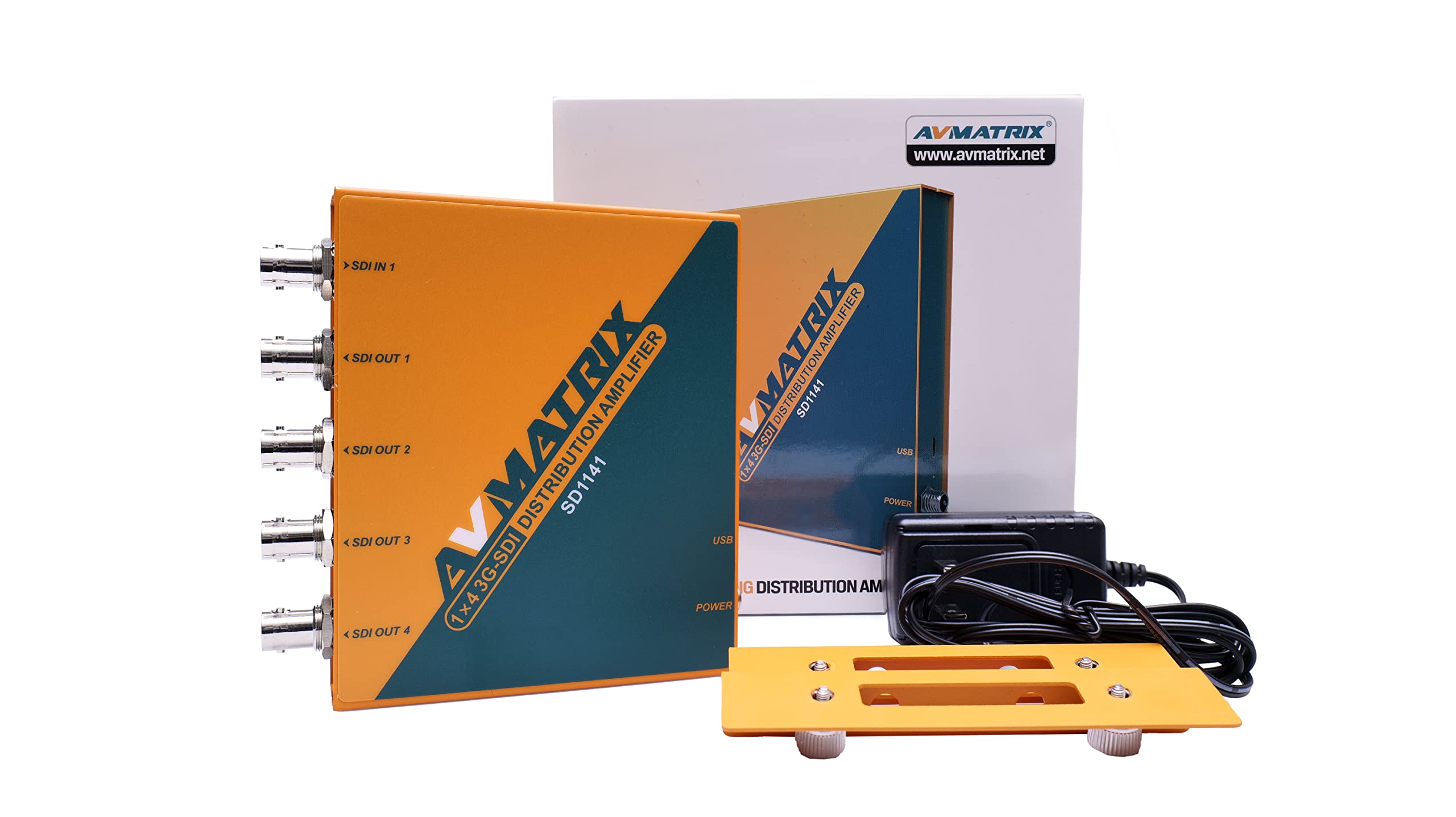

Features *3G/HD/SD-SDI multi-rate signal processing *4 buffered and re-clocked outputs *Output 2 & 4 support DVB-ASI signal *Automatic cable equalization and signal retiming *All ancillary data is passed to the outputs *LED indicators for power and signal lock *Threaded locking power connector *Detachable bracket design for wall mounting SDI input auto-detected SDI format support: up to 1080p Allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m) Input SD/HD/3G-SDI ×1 Output SD/HD/3G-SDI ×4 (Output 2 and 4 support DVB-ASI) SDI Format Support 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94 SDI Video Rate SD/HD/3G-SDI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M SMPTE 424M, SMPTE 425M Level A and B ASI Compliance DVB-ASI SDI Color Space and Precision RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit SDI Auto Switching Auto selects SD, HD and 3G-SDI on input Power Connector Micro USB, Threaded locking connector Voltage Range USB 5V, DC 5~17V Power Consumption 1W Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Size 125.5×104×24.5mm 485g What’s inclued SD1141 (1×4 3G-SDI Reclocking Distribution Amplifier) 5V Special Power Adapters × 1
