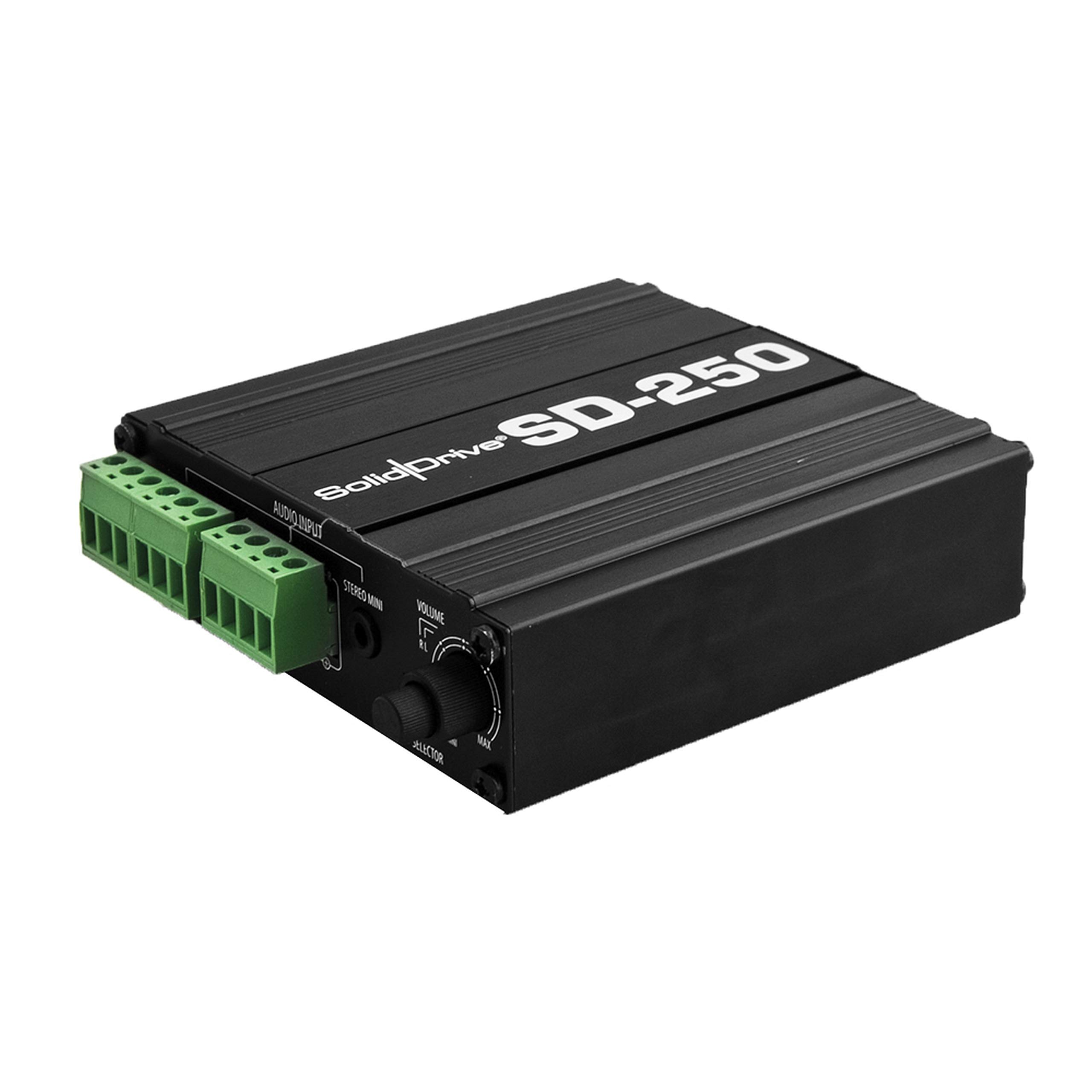

SolidDrive 50 Watts Per Channel Class D AmplifierThe SolidDrive SD-250 is an ultra compact 2-channel amplifier with extra heat sink surfaces for extended duty at full power. The amp is rated at 50 watts per channel and can run in stereo, mono, or bridged mono. But most importantly it has custom electronic EQs for glass, sheet rock, wood, or bypass. Having the correct power and the right EQ will make the AD sound its best. The amp can utalize balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock inputs.The SD-250 is 50-watt per channel (4 ohm) Class D amplifier with maximum gain of 34 dB. The amplifier has built-in, selectable equalization settings for use with the SolidDrive products on wood, glass, drywall and flat setting. Input options include balanced stereo euroblock, unbalanced line level mini jack, and a stereo speaker level (amplified) Euroblock input for applications with low wattage speaker outputs. The SD-250 has three operating modes: stereo, dual mono, or bridged mono. In stereo, each input channel flows directly to its corresponding output channel. In dual mono, the left input is fed to both output channels. In bridged mono, the left input is fed to the bridged output. System includes selectable 12-32 v external trigger input or auto standby to conserve energy.Applications Small, powerful and cost-effective, the SD250 is engineered for external amplification with SolidDrive transducers. Additional a
34 dB maximum gain with 2x 50 watt output.
Built-in, selectable SolidDrive EQ for wood, glass, drywall or flat setting.

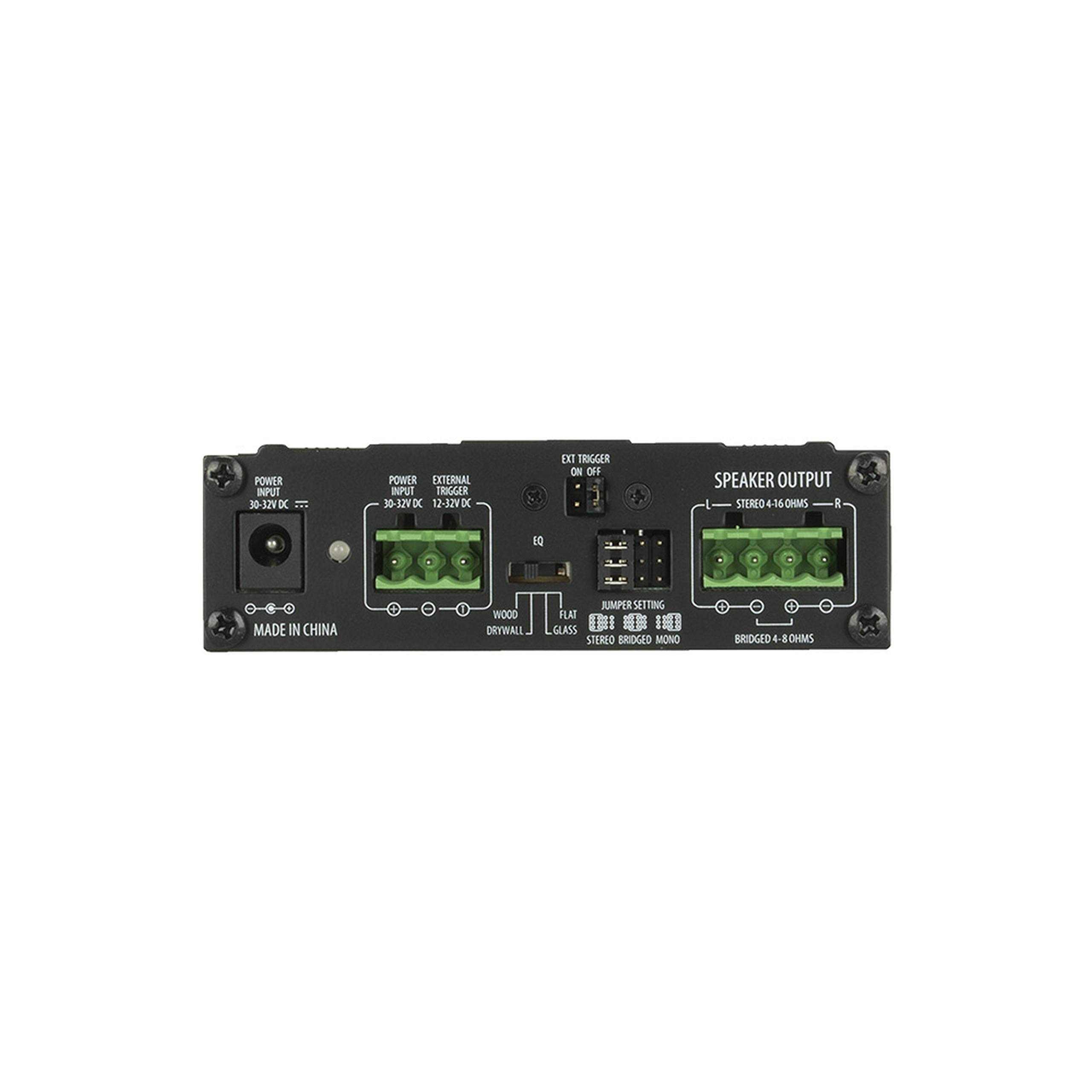

Three operating modes stereo, mono or bridged mono

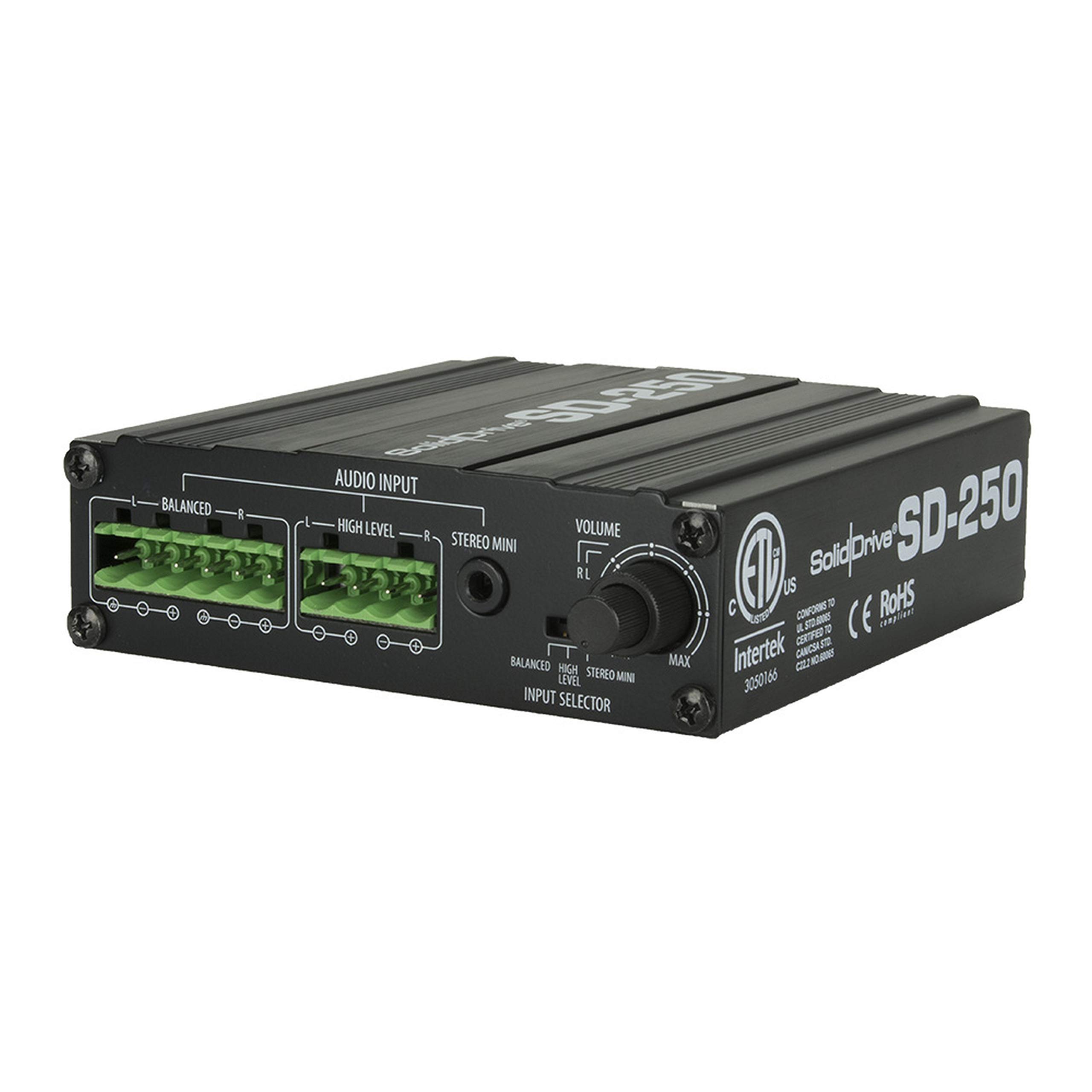

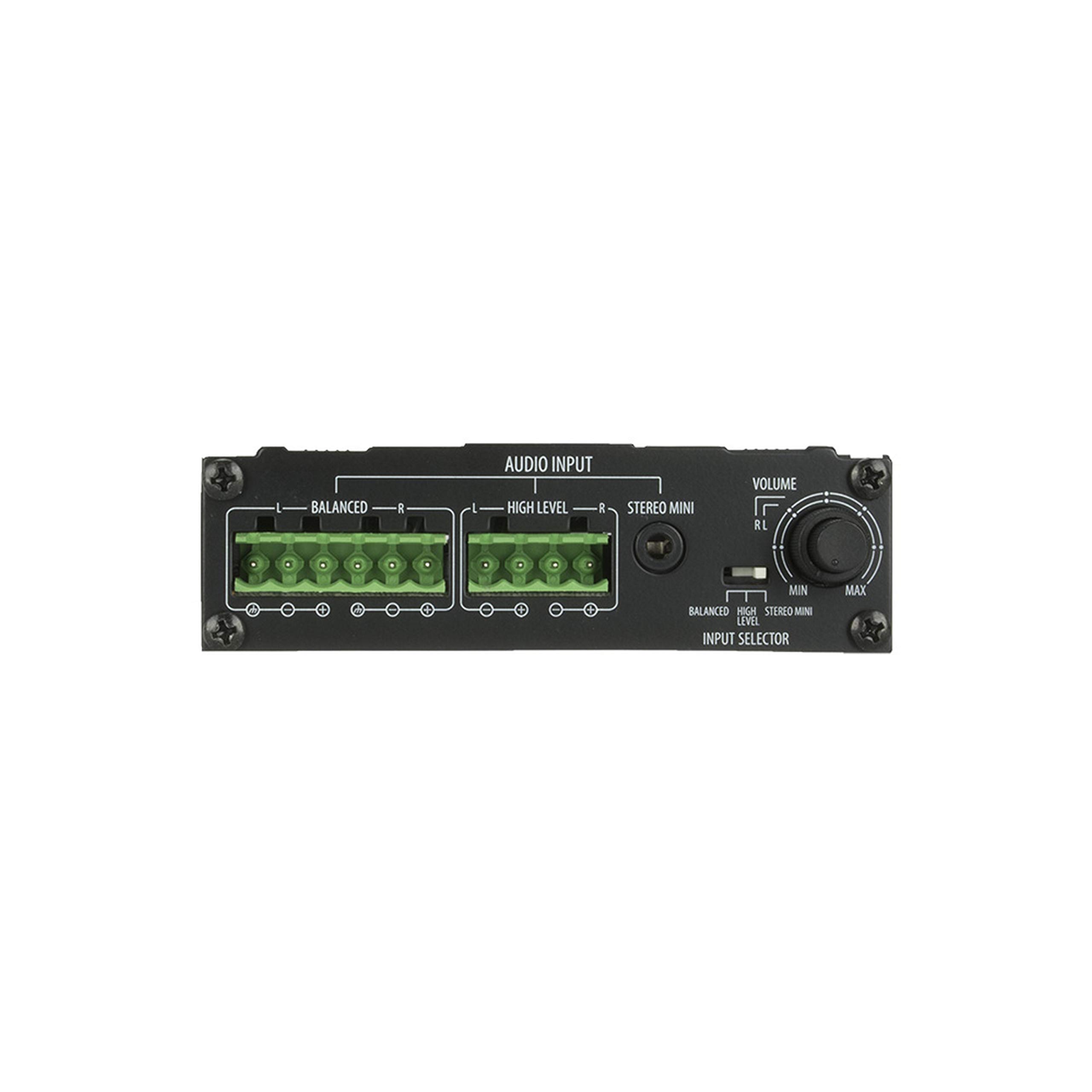

Three user selectable inputs balanced stereo (euroblock), stereo unbalanced mini jack, or high level euroblock.
External 12-32 V trigger
Signal detecting auto standby to conserve energy
Dual concentric gain controls for independent channel control
20 Hz - 20 kHz frequency response
Rugged aluminum housing
